YJCS-6 Multi-function Ultrasonic Mold Polisher Polishing Machine 160W For For Metal,carbide,glass, jade and agate polishing
Original price was: $1,713.73.$1,316.85Current price is: $1,316.85.
29 people are viewing this product right now
🔥 3 items sold in last 3 hours
You may also like
-
-
-
-
Price range: $10.07 through $19.65 -
Price range: $34.20 through $83.52 -
- Brand Name: VENJOYIT
- Hign-concerned Chemical: None
- Origin: Mainland China

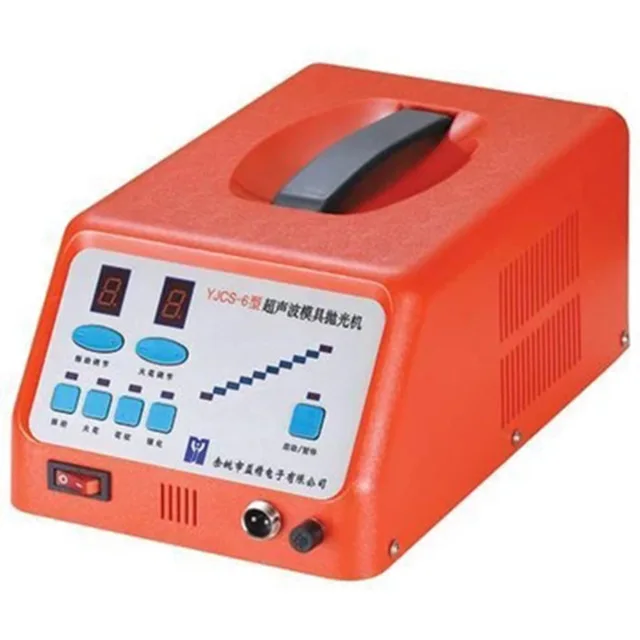

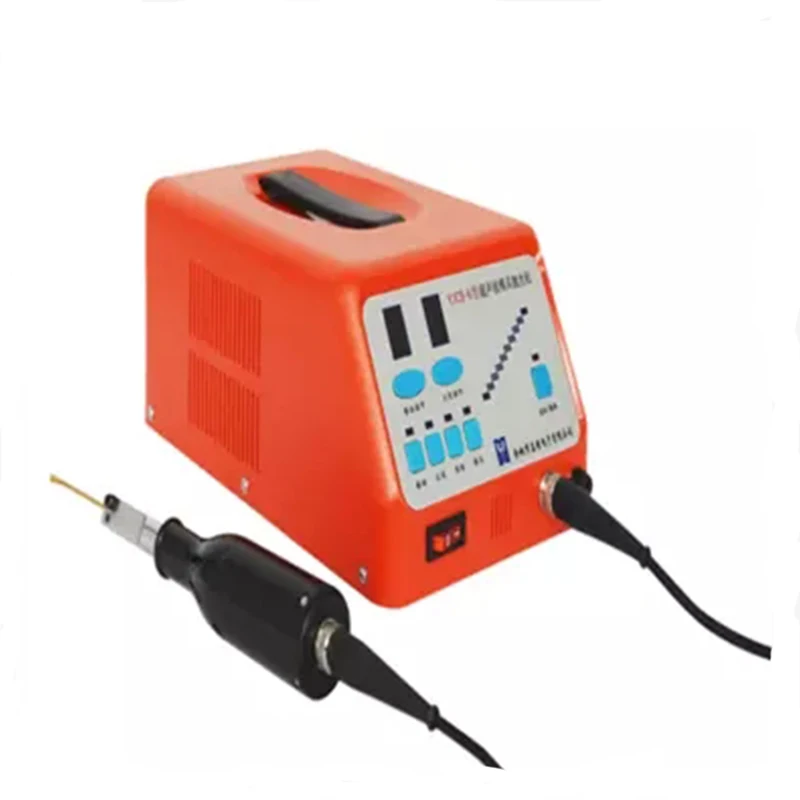

Multi-function Ultrasonic Mold Polisher Polishing Machine YJCS-6 For Metal,carbide,glass, jade and agate polishing
YJCS-6 ultrasonic mold polishing machine adopts the new technology of high-frequency pulse current discharge corrosion and ultrasonic high-speed vibration grinding, which makes the machine not only have strong rough and medium shaping ability, but also can quickly grind the workpiece to the mirror surface. It replaces and partially replaces the inefficient hand-polishing process during the shaping and polishing of mold production.
★The phase-locked frequency automatic tracking technology with independent intellectual property rights and the micro-computer frequency automatic tracking technology make the tool head stable and vibrate in the best state for a long time. It can adapt to different tool heads, ensuring efficiency and easy operation.
★ Inductive energy storage and current limiting technology, the utilization of power supply is greatly improved. At present, the efficiency of 160W machine is close to that of ordinary 300W machine.
★ The adaptive control system of ultrasonic amplitude and discharge state can significantly improve the pulse shaping precision, and the surface roughness after shaping can reach Ra0.3μm.
★ Fine polishing does not affect the accuracy of the workpiece, does not collapse the corners; is not limited by the complex shape of the workpiece and the hardness of the material;
★ It can generate patterns similar to those processed by EDM machines, used to repair the pattern of such molds.
★The tool head is widely available and can be made by users.
1. Scope of application: complex cavity, narrow groove, slit, blind hole, corner, various carbide molds, jade glass crafts, and mirror polishing of various molds. Polishable materials: various metals, hard alloys, glass, jade and agate.
2. Processing surface roughness: <Ra0.012μm (▽13) during ultrasonic polishing; ≤Ra0.3μm during EDM.
3. Polishing medium: synthetic diamond abrasive paste or diamond abrasive paste.
4. Functional range: vibration, sparks, patterns, reinforcement
5. Automatic frequency tracking range: 27-34KHz
6. Maximum power consumption: 160W
7. Power: 220V, 50Hz
8. Dimensions: 320 × 185 × 130mm3, host weight 6Kg
The tool head can be selected according to the process requirements of the workpiece. Under normal circumstances, it is used for shaping and polishing slits, narrow grooves, discharges, and copper strips; copper strips for rough grinding, diamond files and fiber whetstones. Generally, the bamboo is polished, and the wood is finely polished. Abrasives use synthetic diamond abrasive paste
 1. Suitable for narrow parts, such as arts and crafts complex shapes, complex mold cavity, narrow slit groove, blind holes and other parts of the polishing tool can not reach or can not work efficiently.
 2. The high-frequency ultrasonic vibration as the power abrasive grinding, vibration transmission direct impact on productivity. Therefore, the use of ultrasonic polishing, the need to ensure a good connection, look for the frequency accurately.Â
