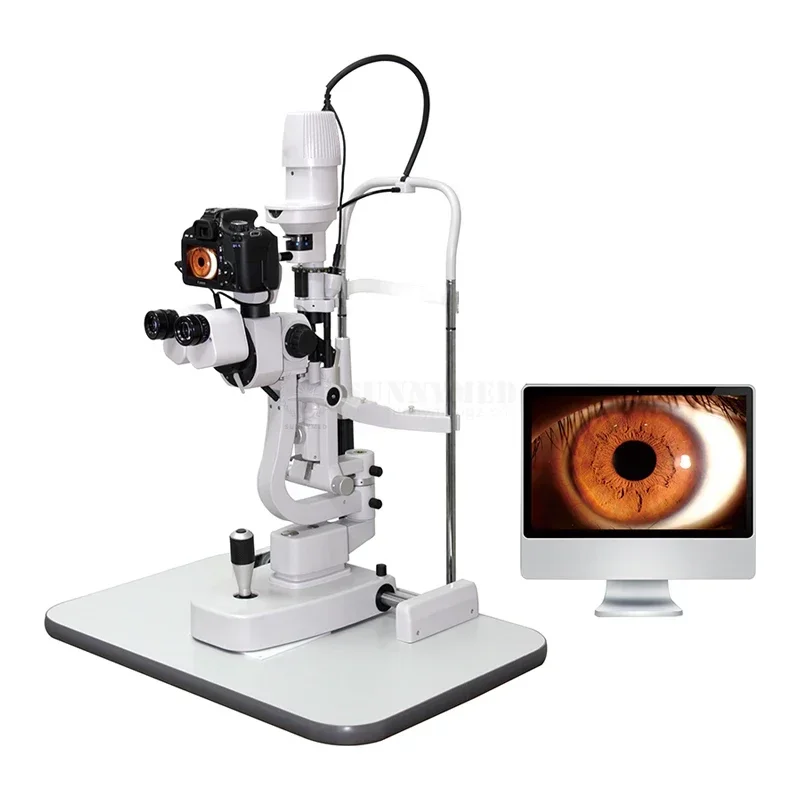

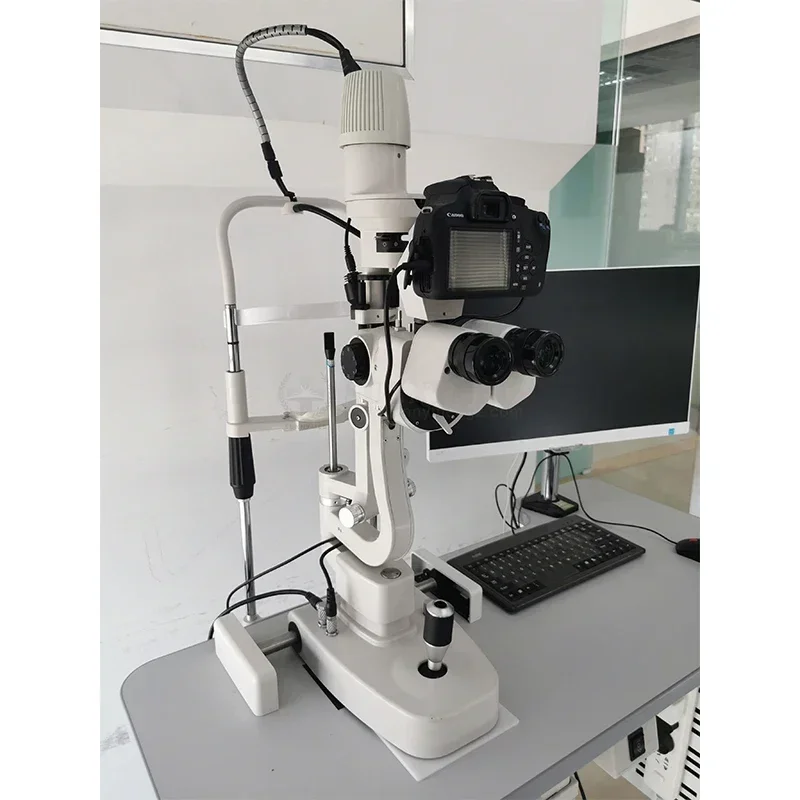

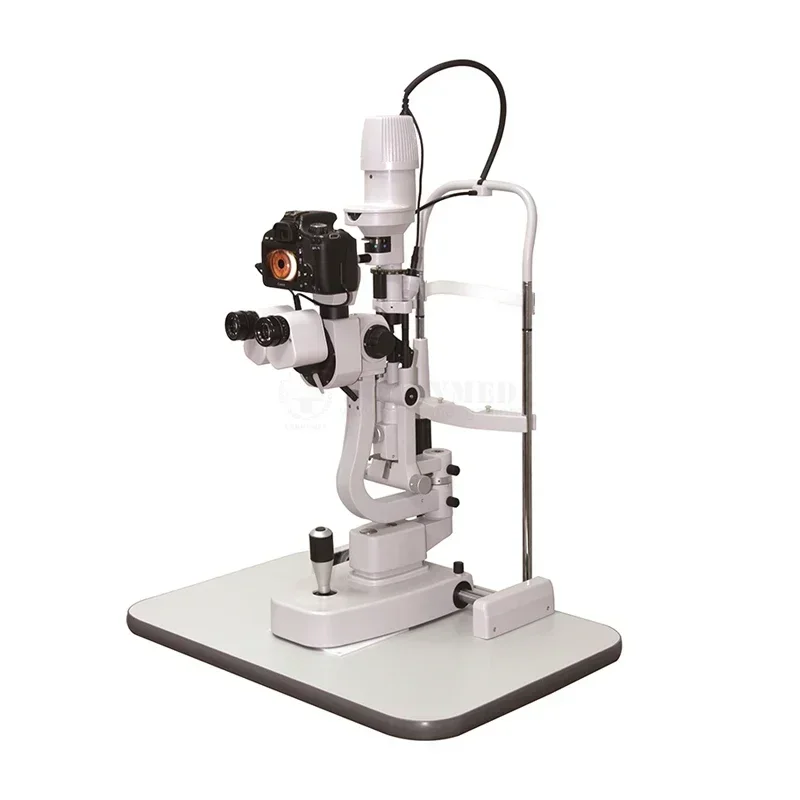

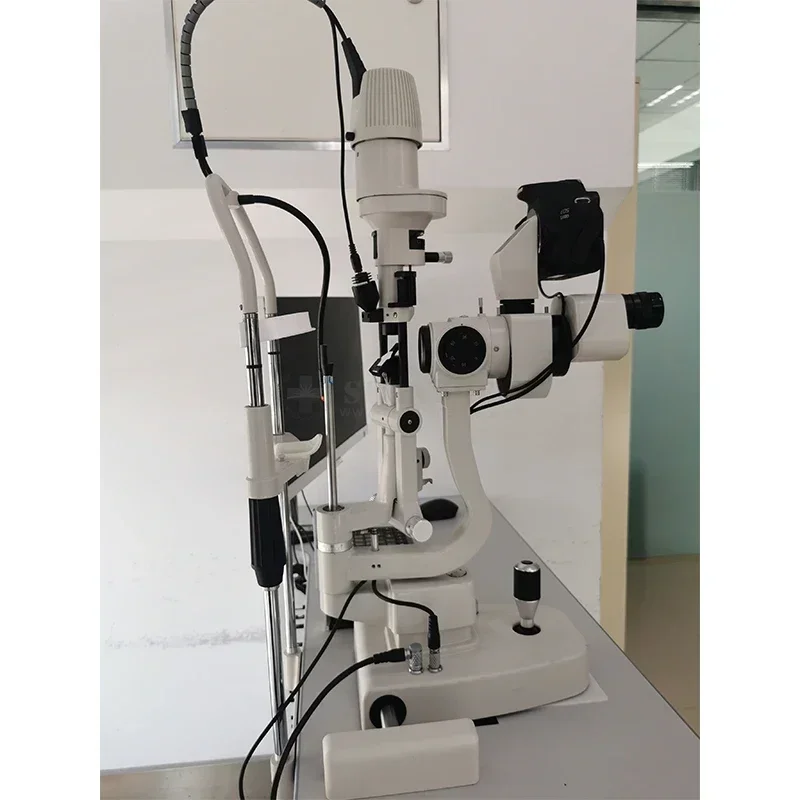

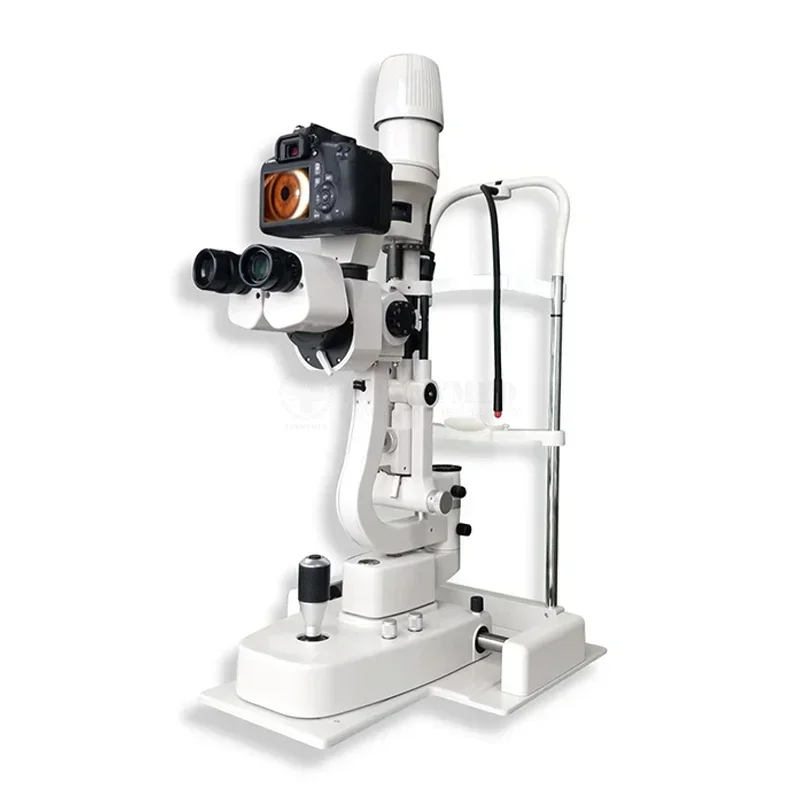

SY-V004-4 Ophthalmic Eye Test Digital Slit Lamp 5 Steps Magnification Microscope



SY-V004-4 Ophthalmic Eye Test Digital Slit Lamp 5 Steps Magnification Digital Slit Lamp Microscope

Why this model?

Feature of Digital Slit Lamp:

ADAPTIVE PARAMETERS One key shooting can easily obtain high-quality image without heavy training of exposure, lSO, shutter speed and other parameters

MANAGEMENT SOFTWARE More clear and direct to manage patients’ informationOne key export is supported, making it easier to transfer data

DATA SHARING With abundant image processing functions to meet various clinical needs DICOM,HIS/PACS is supported

Microscope Type	Galilean Dystem
Magnification Changer	Revolving Drum
Eyepiece Magnification	12.5x
Slit Width	0mm～14mm Continuously Adjustable
Slit Length	1mm～14mm Continuously Adjustable
Slit Angle	0～180°Continuously Adjustable
Filter	Heat Aborption, Grey, Redfree (Green), Cobalt Blue
Light Control PWM	Pulse Width Modulation
Light Source	Warm LED
Magnification	6X 10X 16X 25X 40X
Diopter	±7D
Pupil Range	52mm-85mm
Visual Field Diameter	6X: 33mm; 10X: 22mm;16X: 14mm; 25X: 8.5mm; 40X: 5.5mm
Illumination Type	Haag-Streit Type
Illumination Tilting	5°,10°,15°,20°
Slit Aperture Size	φ0.2,φ1,φ3,φ5,φ10,φ14(mm)
Eyepiece Luminous Rate	60%
Camera Luminous Rate	40%
Background Illumination	Co-Axial

FAQ

1. How to buy?

A. Contact our sale directly!

B. Place the order online.

2. How to pay?

A. Trade assurance
B. Credit Card
C. Paypal in Alibaba
D.T/T(Bank Transfer)
E. Western union
F. L/C
Return policy

3. How long to wait for the order?
A. Ready stock within 24 hours
B. OEM need 2-7 working days
C. Safety delivery:special one-to-one inspection service before arranging the delivery

4. How to use our product?
A. Video tutorial: including installation, operation, repairing and maintenance
B. Real Time Online Video Call at your convenience: Pre-sales and after-sales online video training

5. Warranty and after-sales service
A.12-60 months
B. After-sales service: Reply within 8 hours
