Brand Name: NoEnName_Null
Origin: Mainland China
Hign-concerned Chemical: None
DIY Supplies: Electrical
Warranty: 1 years
Customized support: OEM, ODM, OBM
Place of Origin: Guangdong, China
Brand Name: RUIDE
Material: Magnesium aluminum alloy
Power: lithium battery
Channels: 1598 Channels
Product name: GNSS RTK
Transmitting speed: 9.6Kbps, 19.2Kbps
Transmitting power: 0.5W, 1W, 2W adjustable
Working range: 5km typical, 8~10km optimal
GPS: L1C/A,L2P,L2C,L5,L1C*
Internal battery life: Static 30hours
Weight: 1kg
BDS-2: B1I,B2I,B3I
BDS-3: B1I,B3I,B1C,B2a,B2b

My friend! Thank you very much for clicking to visit our products.You can purchase them directly after seeing them. We will arrange delivery for you as soon as possible. After seeing your message, I will reply to you as soon as possible.
Or add my （whatsapp）+8618692221693
Email: 982106805@qq.com
Tel: +8619116984354
(We.Chat): +8619116984354
LINE(ID)：cgy2002021815
KKT(ID)：yhtlly021815
Facebook(ID)：Mali YI
I wish you a happy shopping!

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:595px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-4{width:446px}#detail_decorate_root .magic-5{overflow:hidden;width:446px;height:223.59466666666668px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-6{margin-top:-3.568px;margin-left:66.60266666666666px;width:446px;height:446px}#detail_decorate_root .magic-7{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-8{font-size:16px}#detail_decorate_root .magic-9{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-10{overflow:hidden;width:446px;height:217.648px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:-28.544px;margin-left:44.00533333333333px;width:446px;height:446px}#detail_decorate_root .magic-12{overflow:hidden;width:446px;height:237.86666666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:-9.514666666666667px;margin-left:2.3786666666666667px;width:446px;height:446px}#detail_decorate_root .magic-14{overflow:hidden;width:446px;height:209.32266666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:76.11733333333333px;width:446px;height:446px}#detail_decorate_root .magic-16{overflow:hidden;width:446px;height:190.29333333333335px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:-2.3786666666666667px;margin-left:90.38933333333334px;width:446px;height:446px}#detail_decorate_root .magic-18{overflow:hidden;width:446px;height:221.216px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:-16.650666666666666px;margin-left:73.73866666666667px;width:446px;height:446px}#detail_decorate_root .magic-20{vertical-align:top}#detail_decorate_root .magic-21{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-22{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-23{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-24{position:relative;left:-46px;top:-3px;width:341px;height:341px}#detail_decorate_root .magic-25{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-26{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-27{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-28{position:relative;left:-39px;top:17px;width:341px;height:341px}#detail_decorate_root .magic-29{position:relative;left:-3px;top:34px;width:245px;height:245px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:422px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:842px}#detail_decorate_root .magic-32{width:750px;border-collapse:collapse}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:273px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{display:none}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:432px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:125px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:124px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:1048px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:1048px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:593px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:593px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:884px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:884px}#detail_decorate_root .magic-46{overflow:hidden;width:373px;height:497.3333333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:373px;height:497.3333333333333px}#detail_decorate_root .magic-48{overflow:hidden;width:373px;height:497px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:330px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}

Products Description

All constellation calculation

Fully receiving data from Beidou, GPS, GLONASS, Galileo satellite systems, as well as various frequency bands, with special support for Beidou-3 global satellite signals, achieving true full frequency and constellation positioning.

Inertial tilt measurement

Built in IMU inertial measurement sensor, calibration free, low delay, ultra large 60 ° angle measurement, instant measurement upon arrival.

Excellent Radio Station

Integrated and fully functional built-in radio for transmitting and receiving, with a typical operating distance of 8km, meeting the needs of conventional operations. Support radio relay and network routing functions, effectively extending work distance.

Super Long Range

Adopting a dual battery design, the 6800mAh high-energy lithium battery is paired with a 6800mAh intelligent battery rod, easily ensuring 30 hours of static operation and 15 hours of dynamic application. Supports hot swapping and unlimited battery life.

Stable and reliable

Equipped with a Linux system platform, real-time internal monitoring, automatic temperature control, power consumption adjustment, and stable operation. IP67 industrial protection, fearless of wind and rain, resistant to 3 meters of free fall.

New LINUX platform

The new generation embedded Linux operating system platform comprehensively improves RTK performance and improves work efficiency. The unique kernel processing mechanism responds to multiple commands simultaneously, enabling faster startup and higher stability, adapting to long-term continuous electrical work.

NFC Flash Touch

The new NFC flash pairing technology can quickly establish communication data links, break away from the traditional cumbersome connection process, and obtain a smoother user experience.

WiFi data link

You can use WiFi to connect to the network, obtain data, and also open WiFi hotspots, which can be accessed by multiple devices for richer settings and adjustments.

Dual mode long-range Bluetooth

Ultra long connection distance, stable signal transmission, compatible with 2.1 standards, remote management of hosts, remote collection of information, convenient and flexible application.

Data Collector

Product Details

allocation			Detailed indicators
Measurement performance	Signal tracking	1598 channels
	Signal tracking			BDS-2:B1I、B2I、B3I BDS-3:B1I、B3I、B1C、B2a、B2b GPS: L1C/A,L2P,L2C,L5,L1C* GLONASS: G1,G2,G3* Galileo：E1,E5b,E5a,E5 AltBoc,E6c SBAS：L1C/A,L5* QZSS：L1 、L2C、 L5 IRNSS：L5*
		GNSS characteristics	Positioning output frequency 1Hz~50Hz The initialization time is less than 10 seconds Initialization reliability>99.99% All constellation reception technology, capable of supporting GNSS constellation signals from all current and planned sources Highly reliable carrier tracking technology greatly improves carrier accuracy and provides users with high-quality raw observation data Intelligent dynamic sensitivity positioning technology, adapted to various environmental changes, and adapted to more harsh and long-distance positioning environments High precision positioning processing engine
positioning accuracy	Code differential GNSS positioning	Horizontal: 0.25 m+1 ppm RMS Vertical: 0.50 m+1 ppm RMS SBAS differential positioning accuracy: typical
		Static GNSS measurement	Plane: ± (2.5mm+0.5 × 10-6D) Elevation: ± (5mm+0.5 × 10-6D) (D is the measured baseline length)
		Real time dynamic measurement	Plane: ± (8mm+1 × 10-6D) Elevation: ± (15mm+1 × 10-6D) (D is the measured baseline length)
Inertial Navigation (optional)	Tilt angle	0 °~60 °
Inertial Navigation (optional)		Tilt compensation accuracy	Accuracy within 30 ° ≤ 2.5CM, accuracy within 60 ° ≤ 5CM
Operating system/ User interaction	operating system	Linux
		Keys	Double button visualization operation
		Indicator light	Five indicator lights
		Web interaction	Support WI-FI and USB modes to access the built-in web management page of the receiver, monitor host status, freely configure hosts, etc
		speech	IVoice intelligent voice technology, intelligent status reporting, voice operation prompts; Chinese, English, Korean, Russian, Portuguese, Spanish and Turkish are supported by default; Support voice customization
		Secondary development	Provide a secondary development package, open OpenSIC observation data format, and define interaction interfaces for secondary development
		Data cloud services	A powerful cloud service management platform that can remotely manage and configure devices, view progress, manage tasks, and more. Southern servers or self built servers can be used.
hardware	size	Diameter 135mm x height 113mm
		weight	1kg
		material quality	Magnesium aluminum alloy
		temperature	Working temperature: -30 ° C to+65 ° C Storage temperature: -40 ° C to+80 ° C
		Protection level	Waterproof: 1m immersion, IP67 level Dust prevention: completely prevents dust from entering, IP67 level
		Shockproof	Anti 2 meter free fall
electrical	source	9-25V wide voltage DC design with overvoltage protection
		battery	High capacity detachable lithium batteries Voltage: 7.4V, 3400mAh
		Power solution	Dual battery design, supporting hot swapping; The host supports contact powered pole shaped batteries, which do not require external power lines. Static mode standard continuous working time is greater than 30 hours, while dynamic mode standard continuous working time is greater than 16 hours (providing a 7 × 24-hour continuous working power supply solution)
communication	I/O ports	5PIN LEMO external power interface+RS232 7PIN LEMO external USB (OTG) Radio antenna interface SIM card slot
		Radio modem	Built in high-power integrated transceiver radio, adjustable in high, medium, and low levels, with a typical operating distance of 8km Switchable network relay and radio relay modes Working frequency 410-470MHz Communication protocols: SOUTH, TrimTalk450S, ZHD, HUACE, Satellite
		Cellular mobility	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during operation, built-in network antenna, equipped with 4G all network high-speed network communication module, compatible with various CORS system access
		Bluetooth	BLE Bluetooth 4.0 Bluetooth standard, supports Android and iOS system phone connection Bluetooth 2.1+EDR standard
		NFC wireless communication	Using NFC wireless communication technology, the manual can automatically pair with the host by touching it (the manual also needs to be equipped with NFC wireless communication module)
		External communication	Optional external GPRS/CDMA dual-mode communication module for free switching and adaptation to various working environments; Support external wireless network card
WiFi	standard	802.11b/g standard
		WiFi hotspot	Equipped with WiFi hotspot function, any intelligent terminal can access the receiver, providing rich personalized customization of receiver functions; Industrial notebooks, smart terminals, and other data collectors can transmit data to the receiver via WiFi
		WiFi data link	The receiver can be connected to WiFi for differential data broadcasting or reception
Data storage/transmission	data storage	8G built-in solid-state memory Automatic cyclic storage (automatically deleting the earliest data when storage space is insufficient) Support external USB memory for data storage Rich sampling intervals, supporting up to 50Hz raw observation data collection
		data transmission	One click intelligent copying, plug and play USB data transfer method, directly exporting static data from the host through external USB memory FTP download, HTTP download
		data format	Static data formats: various formats such as Southern STH, Rinex2.01, and Rinex3.02 Differential data formats: CMR, CMR+, sCMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 Input and Output GPS output data format: NMEA 0183, PJK plane coordinates, binary code, Trimble GSOF Network mode support: VRS, FKP, MAC, supports NTRIP protocol
Inertial Navigation System/Sensors	Inertial tilt measurement	Built in IMU inertial measurement sensor, calibration free, low delay, ultra large 60 ° angle measurement, instant measurement upon arrival.
		Electron bubble	Equipped with a built-in sensor, the manual software can display electronic bubbles and check the leveling of the center pole in real-time
		temperature sensor	Equipped with multiple temperature sensors and intelligent variable frequency temperature control technology, it can monitor and adjust the host temperature in real-time

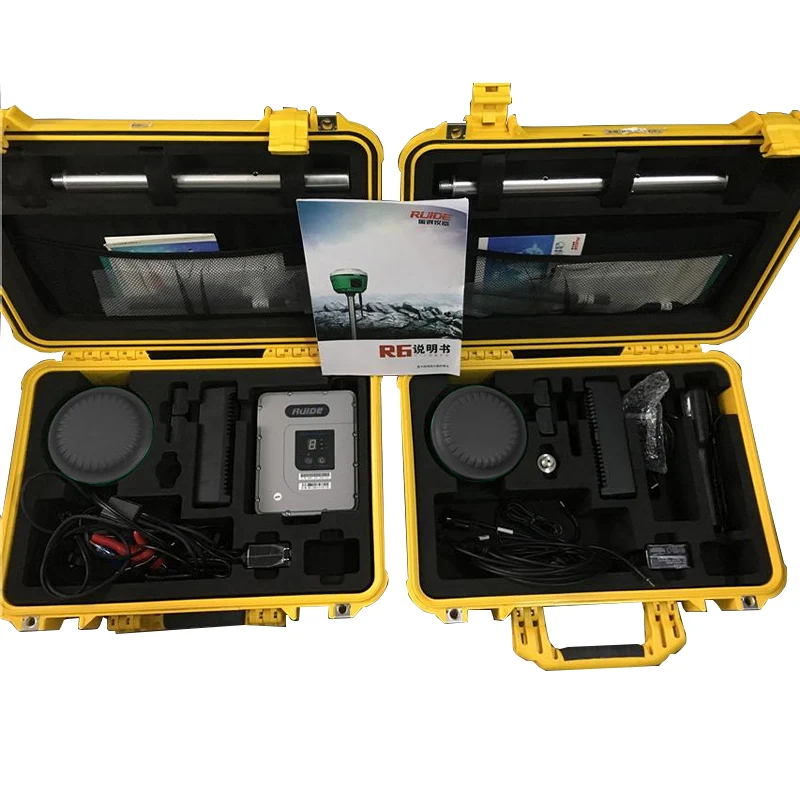

Packing & Delivery

Our Service

Company Profile

Certifications

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

You can pay as you are comfortable

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Round-the-clock delivery	30$
Transportation by plane	105$
Transportation by traine	35$
Transportation by ship	90$

Saving your money for next purchases

Delivery – when you want and anywhere

RUIDE R6P Professional 1598 Channels Rtk Surveying Instrument Gps With Google Function Gnss International Version Rtk

Name: RUIDE R6P Professional 1598 Channels Rtk Surveying Instrument Gps With Google Function Gnss International Version Rtk
SKU: 1005007673042286
Price: 8639.8 USD
Availability: InStock

$8,639.80

Sizing Guide

28 people are viewing this product right now

🔥 9 items sold in last 3 hours

Add to wishlist

SKU: 1005007673042286

Category: Theodolites

Tag: Theodolites

Description

Shipping & delivery

Video

allocation			Detailed indicators
Measurement performance	Signal tracking	1598 channels
	Signal tracking			BDS-2:B1I、B2I、B3I BDS-3:B1I、B3I、B1C、B2a、B2b GPS: L1C/A,L2P,L2C,L5,L1C* GLONASS: G1,G2,G3* Galileo：E1,E5b,E5a,E5 AltBoc,E6c SBAS：L1C/A,L5* QZSS：L1 、L2C、 L5 IRNSS：L5*
		GNSS characteristics	Positioning output frequency 1Hz~50Hz The initialization time is less than 10 seconds Initialization reliability>99.99% All constellation reception technology, capable of supporting GNSS constellation signals from all current and planned sources Highly reliable carrier tracking technology greatly improves carrier accuracy and provides users with high-quality raw observation data Intelligent dynamic sensitivity positioning technology, adapted to various environmental changes, and adapted to more harsh and long-distance positioning environments High precision positioning processing engine
positioning accuracy	Code differential GNSS positioning	Horizontal: 0.25 m+1 ppm RMS Vertical: 0.50 m+1 ppm RMS SBAS differential positioning accuracy: typical
		Static GNSS measurement	Plane: ± (2.5mm+0.5 × 10-6D) Elevation: ± (5mm+0.5 × 10-6D) (D is the measured baseline length)
		Real time dynamic measurement	Plane: ± (8mm+1 × 10-6D) Elevation: ± (15mm+1 × 10-6D) (D is the measured baseline length)
Inertial Navigation (optional)	Tilt angle	0 °~60 °
Inertial Navigation (optional)		Tilt compensation accuracy	Accuracy within 30 ° ≤ 2.5CM, accuracy within 60 ° ≤ 5CM
Operating system/ User interaction	operating system	Linux
		Keys	Double button visualization operation
		Indicator light	Five indicator lights
		Web interaction	Support WI-FI and USB modes to access the built-in web management page of the receiver, monitor host status, freely configure hosts, etc
		speech	IVoice intelligent voice technology, intelligent status reporting, voice operation prompts; Chinese, English, Korean, Russian, Portuguese, Spanish and Turkish are supported by default; Support voice customization
		Secondary development	Provide a secondary development package, open OpenSIC observation data format, and define interaction interfaces for secondary development
		Data cloud services	A powerful cloud service management platform that can remotely manage and configure devices, view progress, manage tasks, and more. Southern servers or self built servers can be used.
hardware	size	Diameter 135mm x height 113mm
		weight	1kg
		material quality	Magnesium aluminum alloy
		temperature	Working temperature: -30 ° C to+65 ° C Storage temperature: -40 ° C to+80 ° C
		Protection level	Waterproof: 1m immersion, IP67 level Dust prevention: completely prevents dust from entering, IP67 level
		Shockproof	Anti 2 meter free fall
electrical	source	9-25V wide voltage DC design with overvoltage protection
		battery	High capacity detachable lithium batteries Voltage: 7.4V, 3400mAh
		Power solution	Dual battery design, supporting hot swapping; The host supports contact powered pole shaped batteries, which do not require external power lines. Static mode standard continuous working time is greater than 30 hours, while dynamic mode standard continuous working time is greater than 16 hours (providing a 7 × 24-hour continuous working power supply solution)
communication	I/O ports	5PIN LEMO external power interface+RS232 7PIN LEMO external USB (OTG) Radio antenna interface SIM card slot
		Radio modem	Built in high-power integrated transceiver radio, adjustable in high, medium, and low levels, with a typical operating distance of 8km Switchable network relay and radio relay modes Working frequency 410-470MHz Communication protocols: SOUTH, TrimTalk450S, ZHD, HUACE, Satellite
		Cellular mobility	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during operation, built-in network antenna, equipped with 4G all network high-speed network communication module, compatible with various CORS system access
		Bluetooth	BLE Bluetooth 4.0 Bluetooth standard, supports Android and iOS system phone connection Bluetooth 2.1+EDR standard
		NFC wireless communication	Using NFC wireless communication technology, the manual can automatically pair with the host by touching it (the manual also needs to be equipped with NFC wireless communication module)
		External communication	Optional external GPRS/CDMA dual-mode communication module for free switching and adaptation to various working environments; Support external wireless network card
WiFi	standard	802.11b/g standard
		WiFi hotspot	Equipped with WiFi hotspot function, any intelligent terminal can access the receiver, providing rich personalized customization of receiver functions; Industrial notebooks, smart terminals, and other data collectors can transmit data to the receiver via WiFi
		WiFi data link	The receiver can be connected to WiFi for differential data broadcasting or reception
Data storage/transmission	data storage	8G built-in solid-state memory Automatic cyclic storage (automatically deleting the earliest data when storage space is insufficient) Support external USB memory for data storage Rich sampling intervals, supporting up to 50Hz raw observation data collection
		data transmission	One click intelligent copying, plug and play USB data transfer method, directly exporting static data from the host through external USB memory FTP download, HTTP download
		data format	Static data formats: various formats such as Southern STH, Rinex2.01, and Rinex3.02 Differential data formats: CMR, CMR+, sCMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 Input and Output GPS output data format: NMEA 0183, PJK plane coordinates, binary code, Trimble GSOF Network mode support: VRS, FKP, MAC, supports NTRIP protocol
Inertial Navigation System/Sensors	Inertial tilt measurement	Built in IMU inertial measurement sensor, calibration free, low delay, ultra large 60 ° angle measurement, instant measurement upon arrival.
		Electron bubble	Equipped with a built-in sensor, the manual software can display electronic bubbles and check the leveling of the center pole in real-time
		temperature sensor	Equipped with multiple temperature sensors and intelligent variable frequency temperature control technology, it can monitor and adjust the host temperature in real-time
