MET-Y02 Electronic Theodolite With Single Bottom Laser Plummet, Red Beam Digital Theodolite For Vertical Level Angle Measuring
Original price was: $331.11.$248.34Current price is: $248.34.
42 people are viewing this product right now
🔥 12 items sold in last 3 hours
You may also like
-
-
-
-
Price range: $10.07 through $19.65 -
Price range: $34.20 through $83.52 -
- Brand Name: XMSJ
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Metalworking
- warranty: 1 Year
- customized support: OEM
- place of origin: Jiangsu, China
- model number: MET-Y02
- material: METAL
- power: Li-ion Battery
- voltage: 7.4V
- Name: Electronic Theodolite
- Model: MET-Y02

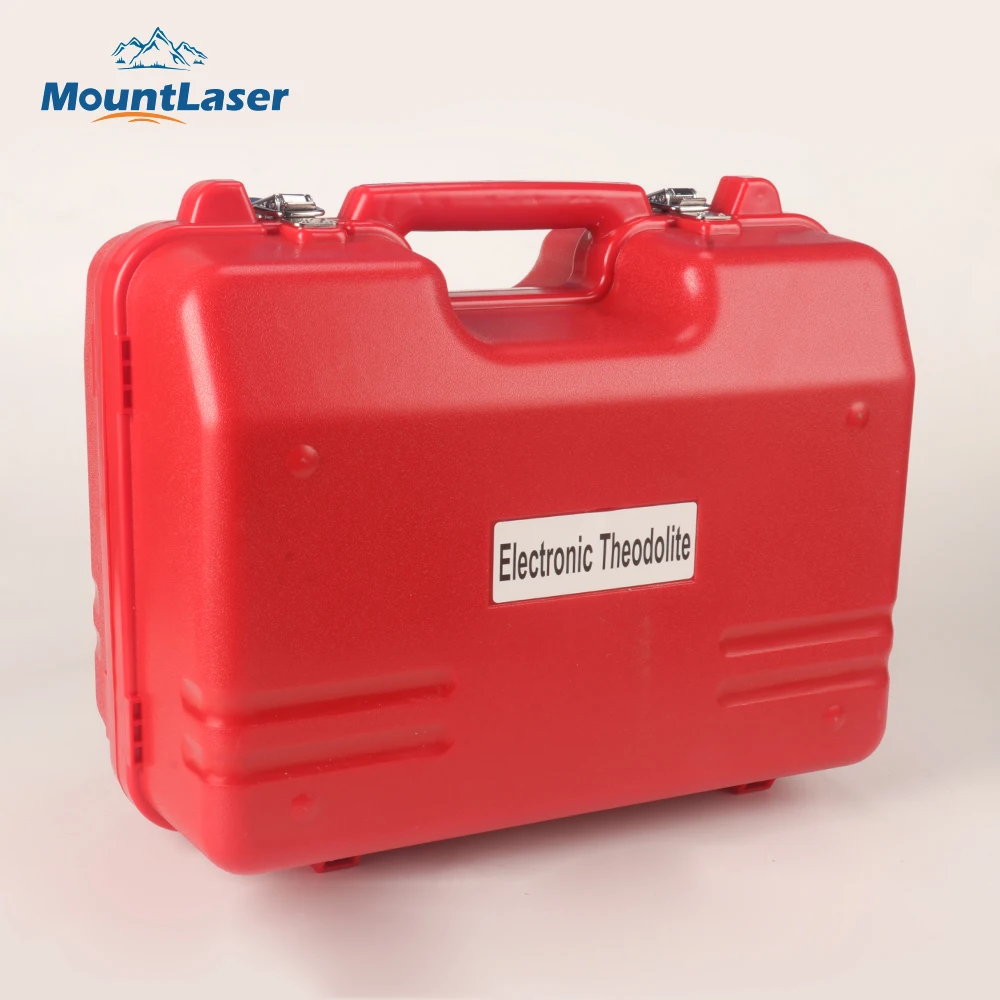

- Package: hardcase+carton
- MOQ: 1 PCS
- Color: Yellow+Gray
- Magnification: 30X
- Measuring Mode: Absolute Encoder
- Wave Length: 650nm Red
- Image: Erect
- Place of origin: Jiangsu, China
Hello, Dear friends, please contact customer service to ask for product details before you place an order!
#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{border-bottom-style:solid;border-bottom-color:#000;font-family:Arial,Helvetica;font-size:24px;color:#ea9924;background-color:#f0f8ff;font-style:italic;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px;padding-left:3px}#detail_decorate_root .magic-2{vertical-align:top}#detail_decorate_root .magic-3{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-4{font-size:22px}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-9{margin-bottom:0}#detail_decorate_root .magic-10{position:relative;width:100%}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:578.4px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:345px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:125.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:344.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:125.4px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{text-align:left}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:214px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:344px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{font-size:16px}#detail_decorate_root .magic-23{width:750px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:193px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:193px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:640.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:640.5px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:401px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:401px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:808.125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:808.125px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:666.3346613545817px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:666.3346613545817px}
Products Description

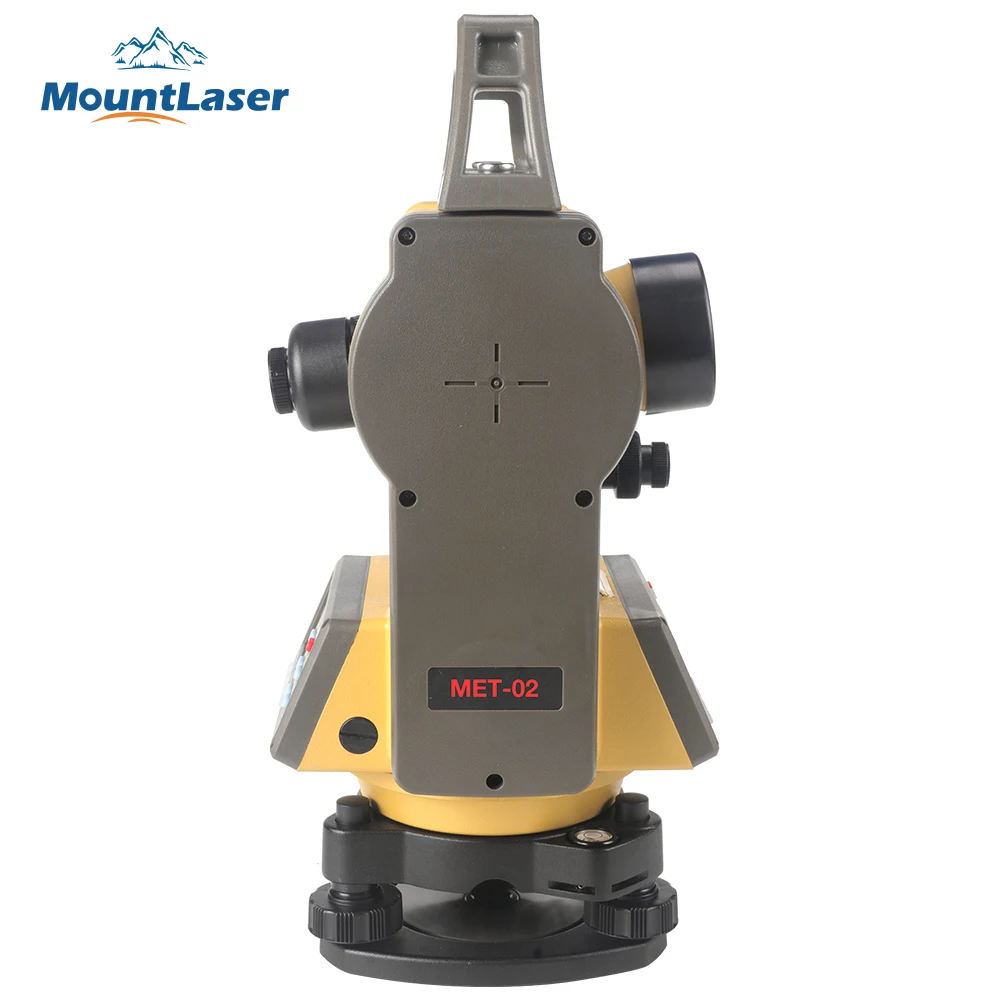

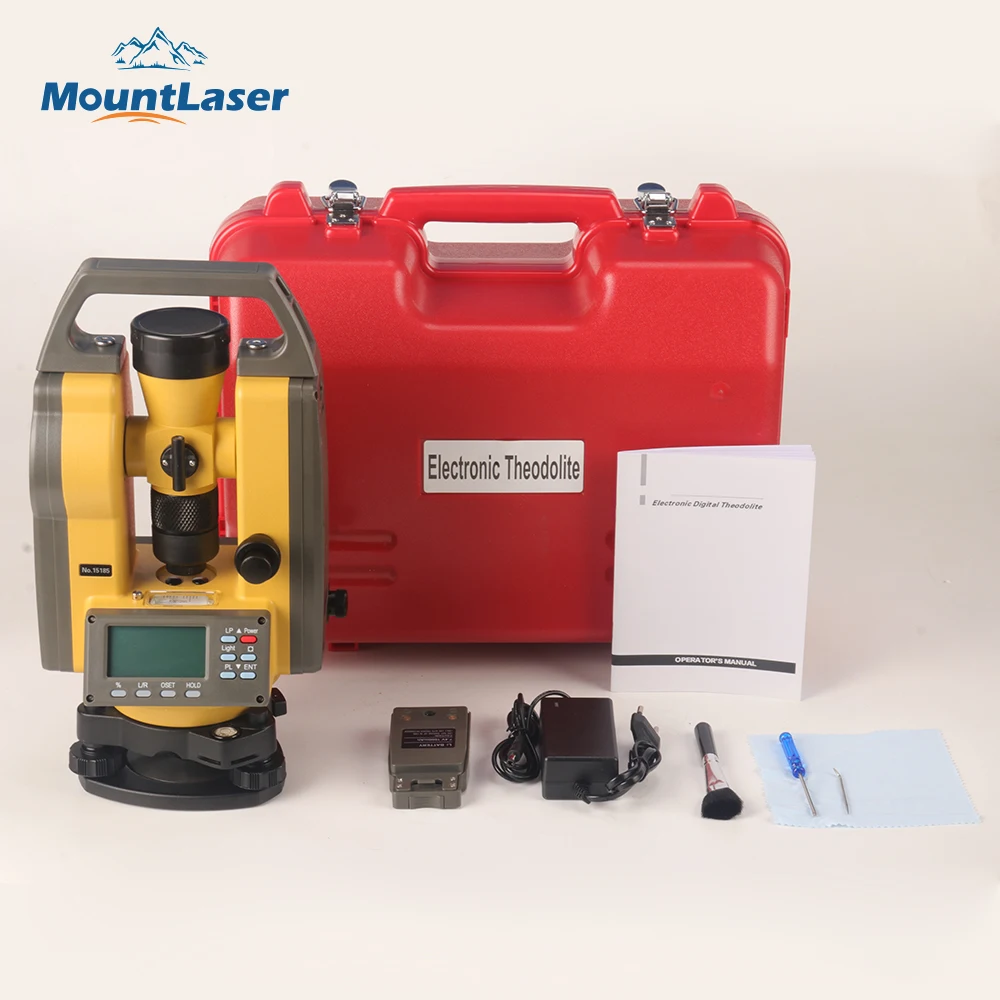

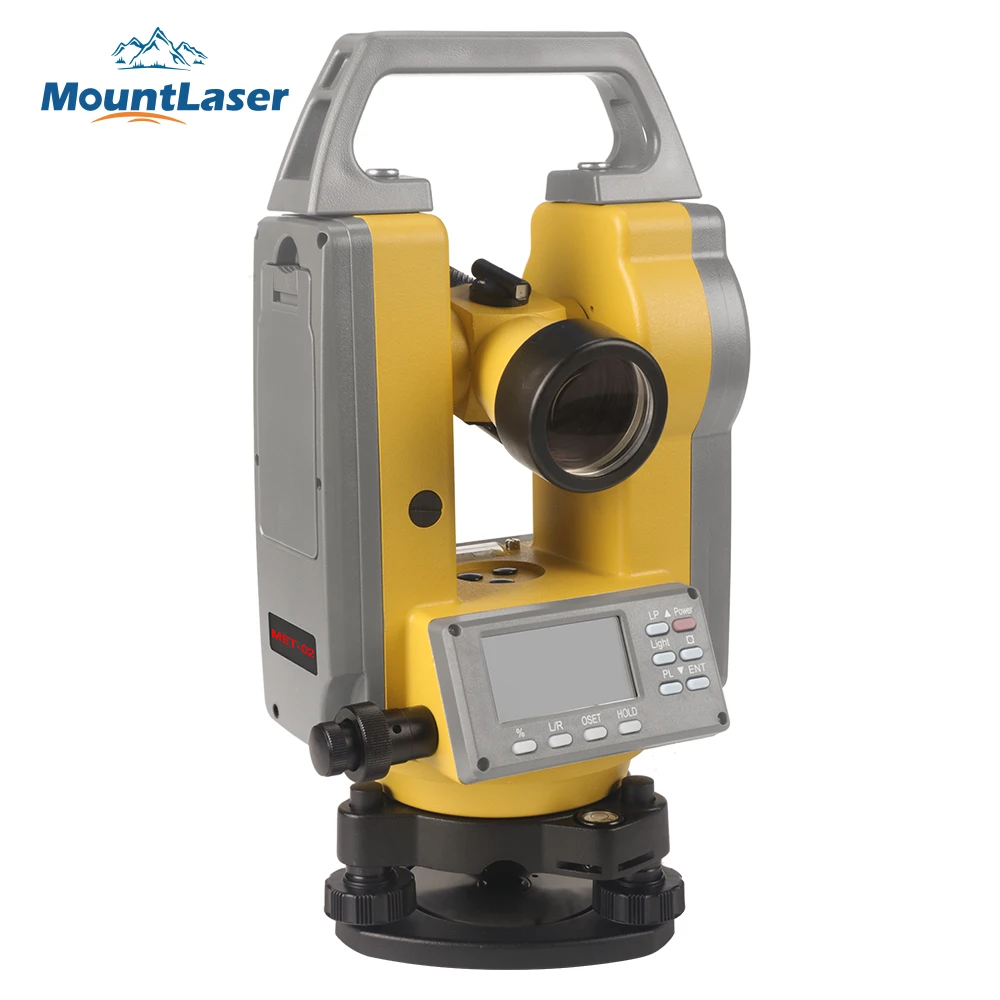

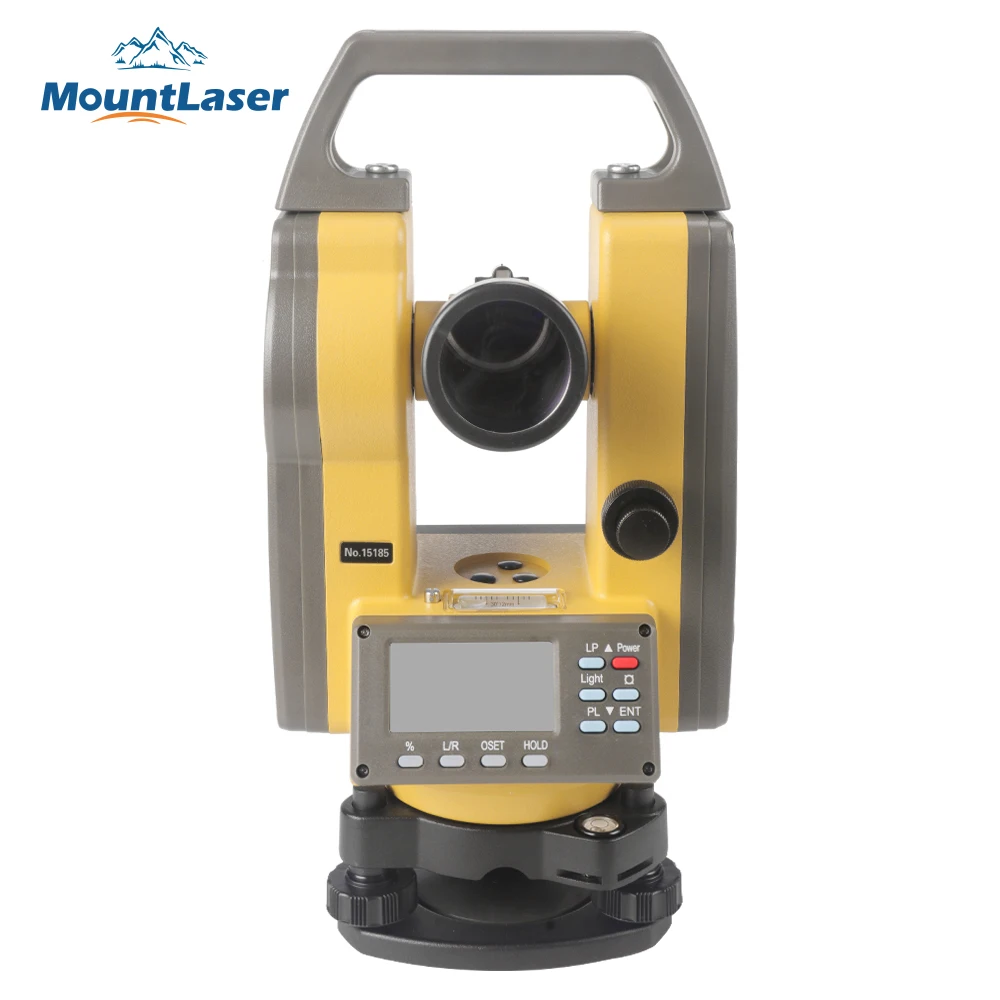

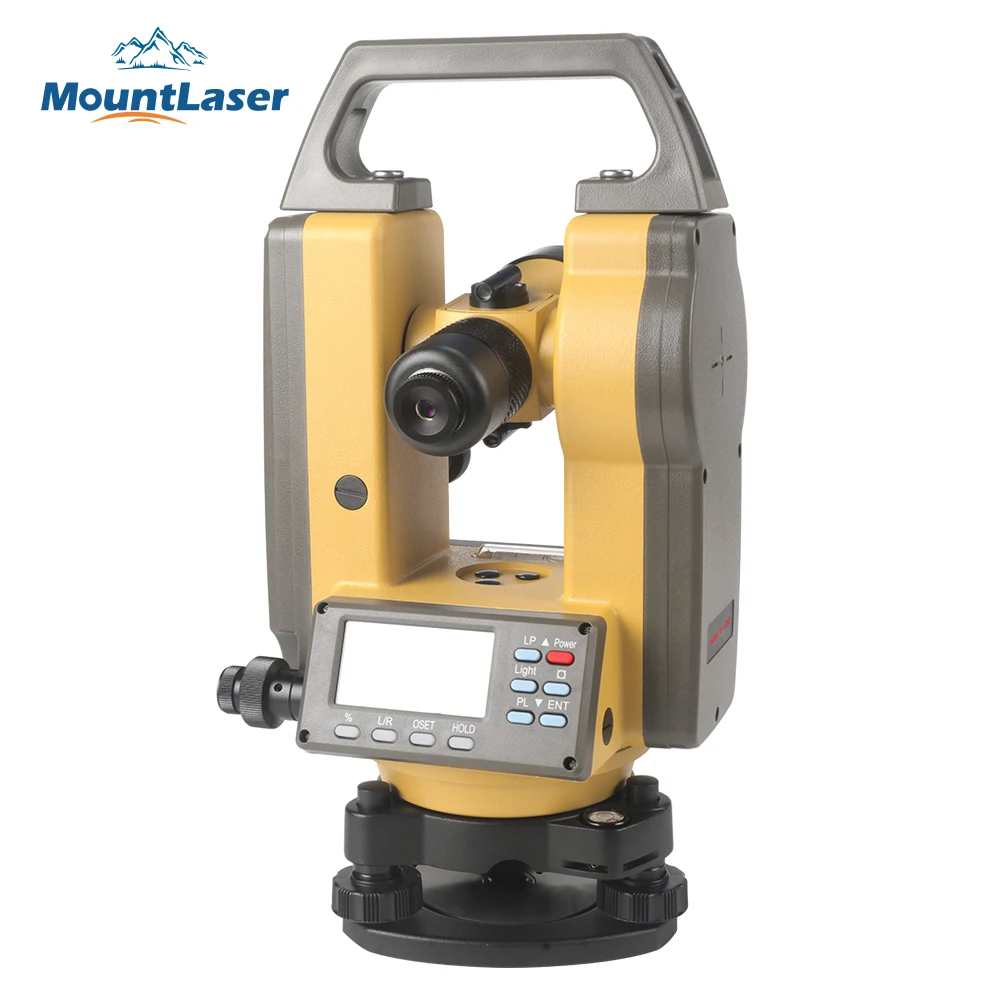

Mount Laser Electronic Theodolite
Features:
*Absolute Coding Angle Measuring System. *Angle Measurement Digitization, Intelligence, High Reliability. *Double-Sided LCD Panel, Clear Display, Easy to Use *Steel Shaft System, Metal Casing, Long Service Life *Independent Tilt Sensor, Automatic Correction of Tilt Error *Sealed Waterproof Telescope. *Coaxial Locking Screw and Fine-Tuning Screw for Easy Measurement
Product Paramenters
|
Model
|
MET-Y02
|
|
|
|
Tribrach
|
Detachable
|
|
|
|
Telescope
|
|
Erect Image
|
|
|
|
Magnification
|
30X
|
|
|
|
Objective Aperture
|
47mm
|
|
|
|
Resolution
|
3.75″
|
|
|
|
FOV
|
1°30′
|
|
|
|
|||
|
|
Multiplication/Additive Constant
|
100/0
|
|
|
|
Sight Distance Precision
|
≤0.4%D
|
|
|
|
Length
|
162mm
|
|
|
Angle Measurement
|
Measuring Mode
|
Absolute Encoder
|
|
|
|
Minimum Reading
|
1″/5″/10″
|
|
|
|
Reading Accuracy
|
2″
|
|
|
|
Circle Diameter
|
74mm
|
|
|
|
Angle Units
|
360°/ 400gon /6400mil
|
|
|
Compensator
|
Tilt Sensor
|
Yes
|
|
|
|
Compensator System
|
Liquid-Electric Detection
|
|
|
|
Range
|
鍦�3′
|
|
|
Laser Plummet
|
Wave Length
|
650nm Red
|
|
|
|
Power
|
5mw
|
|
|
|
Accuracy (1.5m)
|
±1mm
|
|
|
|
Laser Grade
|
Class Il
|
|
|
Vial
|
Plate Vial
|
30″/2mm
|
|
|
|
Circular Vial
|
8’/2mm
|
|
|
Display
|
Dual Face
|
LCD
|
|
|
Power
|
Power Resource
|
Li-ion Battery 7.4V 1600mAh
|
|
|
|
Working Time
|
About 24Hours
|
|
|
|
Working Temperature
|
-10鈩儈+45鈩�
|
|
Company Profile
Mountlaser(Changzhou) Instrument Co., Ltd
is a leading manufacturer of tools and accessories for the surveying, construction, GPS & GNSS industries.
With over 8000 square meters and over 100 employees all our die casting, machining, injection molding, painting and final assembly
are carried out inhouse
At Mount Laser we pride ourselves on producing quality items at an affordable price. with many of our products sold throughout the
international market.
Factory have product line of die casting processing, machining processing, injection molding, precision optical cold processing
assembly, painting and finial assembly and testing. 85% of the product enter into international market.
are carried out inhouse
At Mount Laser we pride ourselves on producing quality items at an affordable price. with many of our products sold throughout the
international market.
Factory have product line of die casting processing, machining processing, injection molding, precision optical cold processing
assembly, painting and finial assembly and testing. 85% of the product enter into international market.
