CHCNAV CHC I89 Dual Cam era Pocket-Sized Visual IMU-RTK GNSS Video Surveying Instrument GPS Receiver
Original price was: $2,184.86.$1,742.35Current price is: $1,742.35.
25 people are viewing this product right now
🔥 10 items sold in last 3 hours
You may also like
-
-
-
-
Price range: $10.07 through $19.65 -
Price range: $34.20 through $83.52 -
- Brand Name: LanYuXuan
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Certification: CE
- warranty: 1 year
- customized support: OEM, ODM, OBM
- place of origin: Shanghai, China
- brand name: CHC
- Product name: CHCNAV CHC i89 Dual Camera GNSS IMU RTK
- Channel: 1408
- Model: i89
- Weight: 0.73kg
- Dimensions(W*H): 133.5mm*80mm
- Operating Language: English
- Supports: WIFI
- BDS: B1I,B2I,B3I,B1C,B2a,B2b
- GPS: L1C/A,L1C,L2C,L2P,L5
- GLONASS: G1,G2,G3G1,G2,G3
Dear friends, welcome to our store. If you need other models of this product, please contact me on WhatsApp+86 185 2824 1559 or WeChat+86 132 65392016 (email: dy44731415926@163.com )I will send a product link for you to purchase!Product Description
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-5{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-6{font-size:16px}#detail_decorate_root .magic-8{font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit;font-size:16px}#detail_decorate_root .magic-9{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-10{margin-bottom:0}#detail_decorate_root .magic-11{position:relative;width:100%}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:299px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:405px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:300px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:404px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{width:750px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:120px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:-19px;margin-left:3px;width:750px;height:137px}#detail_decorate_root .magic-21{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:847px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:-2px;margin-left:-3px;width:750px;height:847px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:1424px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:1424px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:1596px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:-10px;margin-left:-3px;width:750px;height:1596px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:884px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:884px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:1001px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:1001px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:1471px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:1471px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:154px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:154px}#detail_decorate_root .magic-36{font-size:18px}

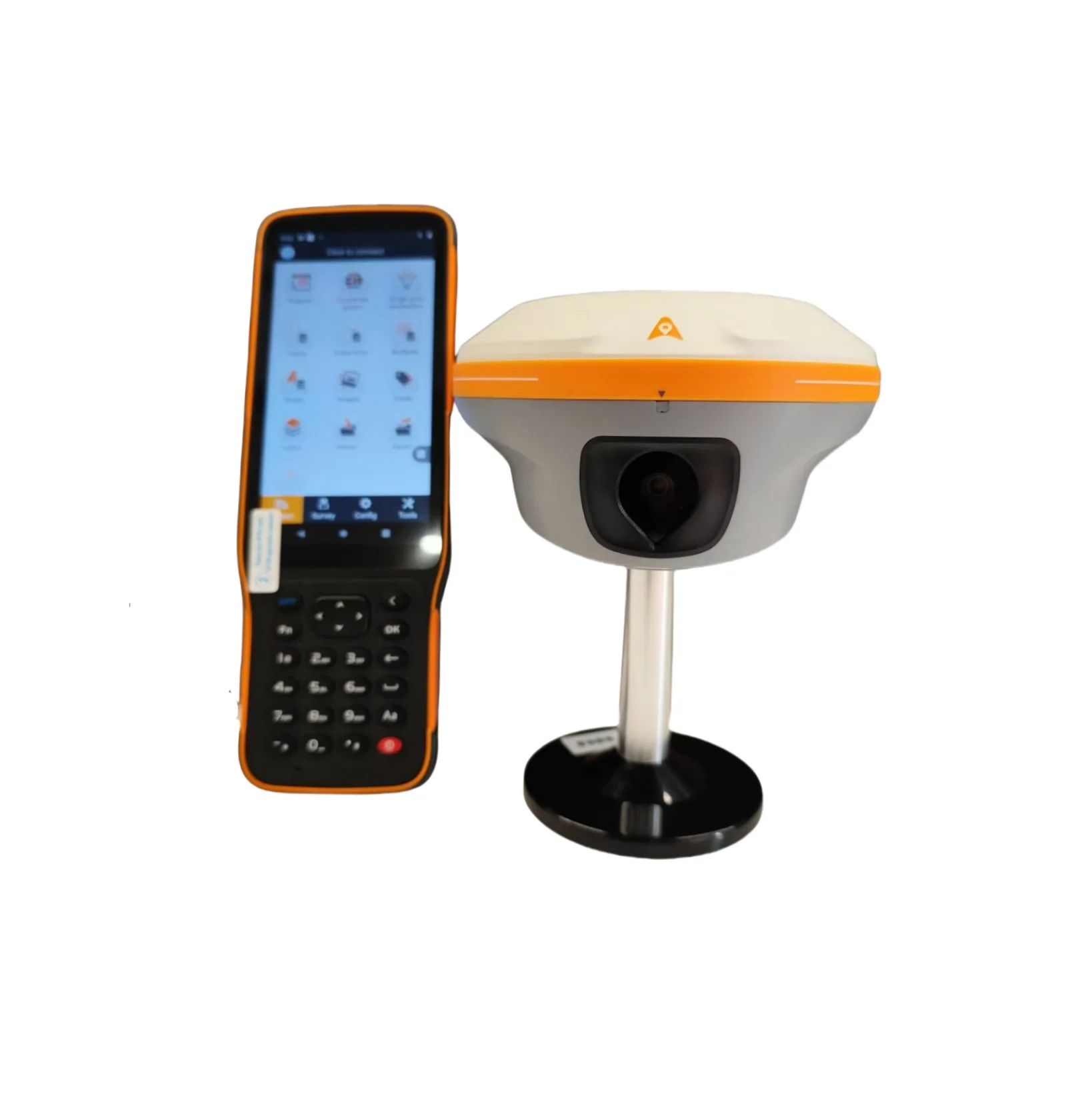

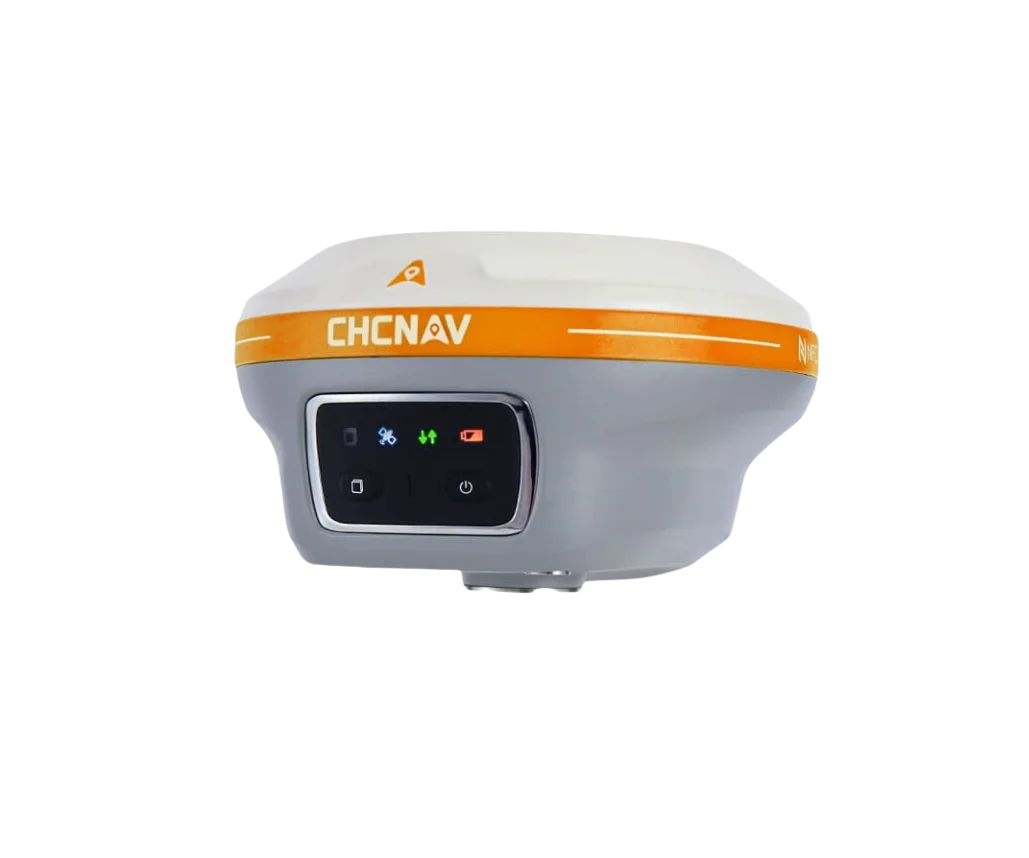

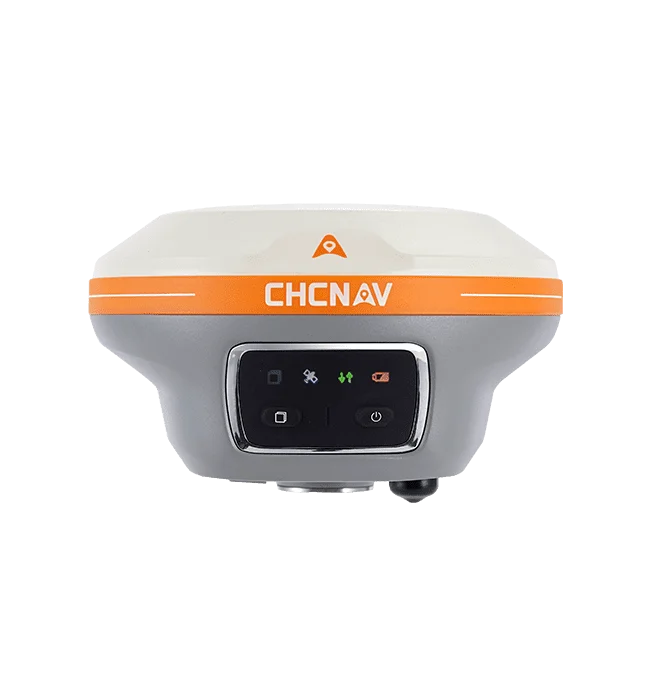

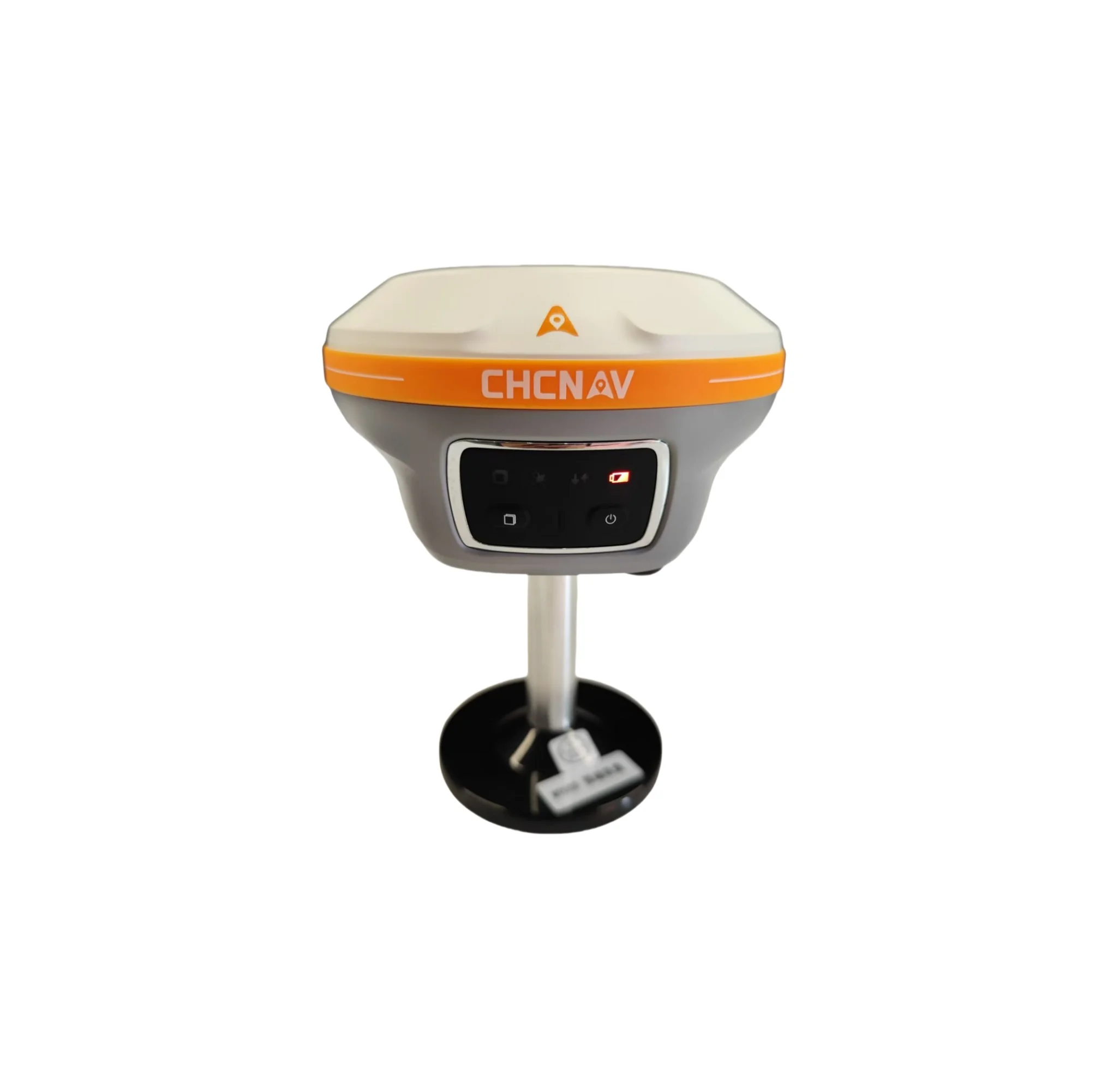

CHCNAV CHC I89 Dual Camera Pocket-Sized Visual IMU-RTK GNSS Video Surveying Instrument GPS Receiver
The i89 Visual IMU GNSS is a compact surveying tool equipped with a 1408-channel GNSS module, which enhances RTK availability, even in challenging environments. Its CHCNAV iStar2.0 software incorporates advanced ionospheric modeling algorithms, achieving high integrity RTK fix rate, particularly critical in regions of intense solar activity. The implementation of AUTO-IMU technology eliminates the need for manual initialization, streamlining field operations for increased efficiency. In addition, the i89 offers an impressive 16.5 hours of battery life and a lightweight 750g design, ensuring optimal productivity throughout various day-to-day surveying tasks. The i89 features Visual Surveying capabilities, providing accurate 3D coordinate extraction from real-world video and simplifying measurements in locations with signal obstructions, limited accessibility, or safety concerns. The combination of panoramic capture mode and integrated IMU significantly improves the accuracy and efficiency of photo grammetric surveys. In addition, the integrated AR visual navigation and stakeout features can cut the operator’s workload by half, regardless of their experience level in the field.
|
GNSS Performance
|
|
|
|
Channels
|
1408 channels
|
|
|
GPS
|
L1C/A,L1C,L2C,L2P,L5
|
|
|
GLONASS
|
G1,G2,G3
|
|
|
Galileo
|
E1,E5a,E5b,E6*
|
|
|
SBAS
|
L1C/A*
|
|
|
QZSS
|
L1C/A,L1C,L2C,L5
|
|
|
IRNSS
|
L5*
|
|
|
BDS
|
B1I,B2I,B3I,B1C,B2a,B2b*
|
|
|
GNSS Accuracies
|
|
|
|
Real time kinematics (RTK)
|
Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS Initialization time: <10 s Initialization reliability: >99.9% |
|
|
Post-processing kinematics (PPK)
|
Horizontal: 3 mm + 1 ppm RMS
Vertical: 5 mm + 1 ppm RMS |
|
|
Post-processing static
|
Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS |
|
|
Code differential
|
Horizontal: 0.4 m RMS
Vertical: 0.8 m RMS |
|
|
Autonomous
|
Horizontal: 1 m RMS
Vertical: 1.5 m RMS |
|
|
Positioning rate
|
1 Hz, 5 Hz and 10 Hz
|
|
|
Time to first fix
|
Cold start: < 45 s
Hot start: < 10 s Signal re-acquisition: < 2s |
|
|
IMU update rate
|
200 Hz
|
|
|
Tilt angle
|
0-60°
|
|
|
RTK tilt -compensated
|
Additional horizontal pole-tilt
uncertainty typically less than 10 mm + 0.7 mm/° tilt |
|
|
Hardware
|
|
|
|
Size (L x W x H)
|
133.5mm*80mm
|
|
|
Weight
|
0.73 kg (1.60 lb)
|
|
|
Front panel
|
4 LED, 2 physical buttons
|
|
|
Environment
|
Operating: -40°C to +65°C
(-40°F to +149°F) Storage: -40°C to +85°C (-40°F to +185°F) |
|
|
Humidity
|
100% condensation
|
|
|
Ingress protection
|
IP67 waterproof and dustproof,protected from temporary immersion to depth of 1 m
|
|
|
Shock
|
Survive a 2-meter pole drop
|
|
|
Tilt sensor
|
Calibration-free IMU for pole-tilt compensation.
Immune to magnetic disturbances.E-Bubble leveling |
|
|
Communication
|
|
|
|
Wi-Fi
|
802.11 b/g/n, access point mode
|
|
|
Bluetooth
|
V4.2
|
|
|
Others
|
NFC
|
|
|
Ports
|
1 x USB Type-C port(external power, data download, firmware update)
1 x UHF antenna port (TNC female) |
|
|
UHF radio
|
Standard Internal Tx/Rx:
410 -470 MHz Transmit Power: 0.5 W, 1W Protocol: CHC, Transparent, TT450, Satel Link rate: 9,600 bps to 19,200 bps |
|
|
Data formats
|
RTCM 2.x, RTCM 3.x,
CMR input /output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster |
|
|
Data storage
|
8 GB internal memon
|
|
|
Electrical
|
|
|
|
Power consumption
|
Typical 4 W (depending on user settings)
|
|
|
Li-ion battery capacity
|
Built-in non-removable battery 6800 mAh, 7.4 V
|
|
|
Operating time on internal battery
|
UHF I4G RTK Rover: up to 14.5 h UHF RTK Base: up to 6.5 h Static: up to 18 h
|
|
|
Certifications
|
|
|
|
CE Mark; FCC Part 15 Subpart B Class B; NGS Antenna Calibration
|
|
|
