35Mhz~4.4GHz N-type V10 RF Power Meter Spectrum Analyzer Display USB Communication Attenuator Calibration EMCPower Detector

N-type RF power meter V10 TYPE-C Communication power detector spectrum analyzer EMC test 2024

 the link  download data  .thank you
http://115.28.16.44:81/file/0168.zip
MT is manual mode, LCD display mode
To use the upper computer, it is necessary to adjust to AUTO mode

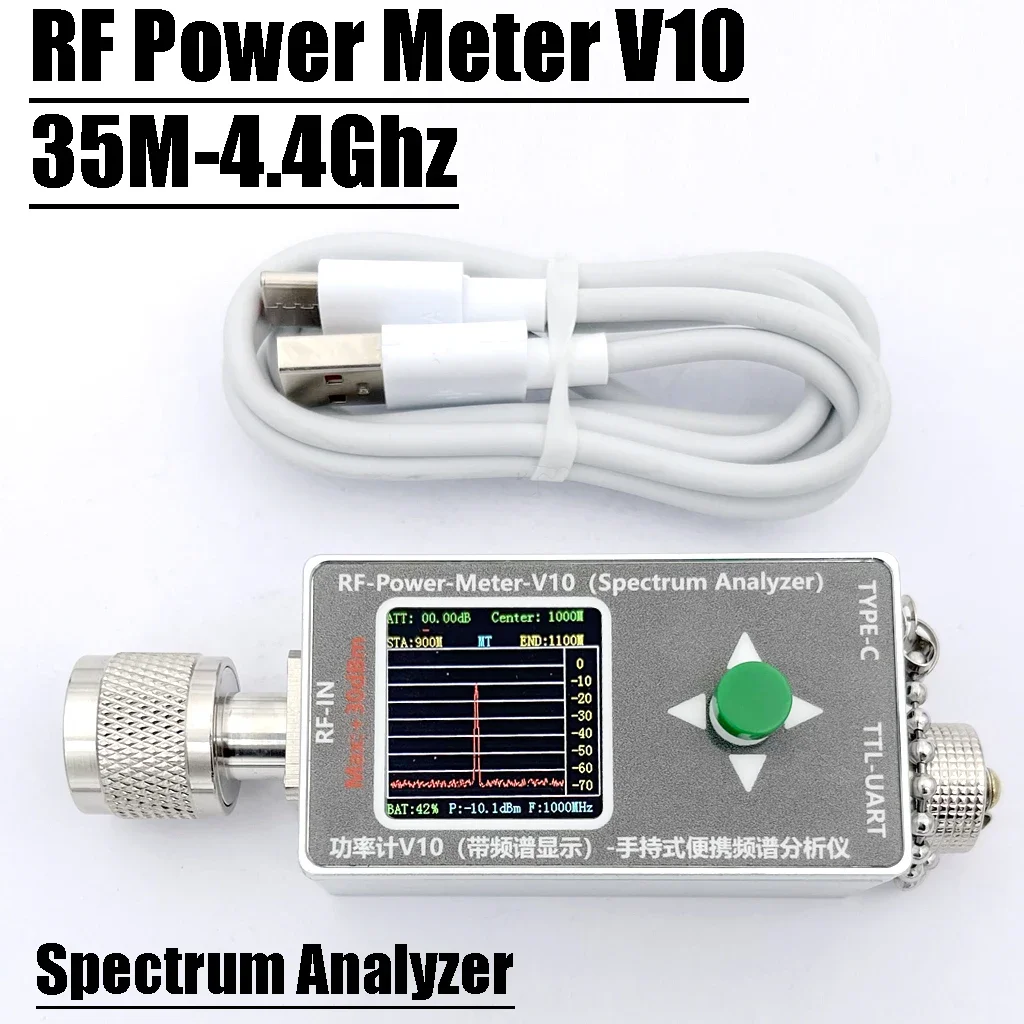

I. Product Overview:

The RF-Power-Meter V10 series is a high-performance low-cost portable TYPE-C simple RF Power Meter (with spectrum display function). TYPE-C provides 5V power supply and high-speed data communication. Simple to use, small size, easy to carry, stable performance, high accuracy, preset bias, wide dynamic range, fast measurement speed. The software accompanying the power meter enables users to configure the power meter on the PC side and make data recording and sharing easy.

Rf-power-meter -V10 RF Power Meter Advantages:

1, support a variety of high-speed dynamic acquisition, support spectrum display, can accurately measure single-frequency RF power; 2, up to support 4GHz RF signal acquisition function;

3, built-in digital programmable attenuator (O-31.75DB), with numerical control attenuator in the case of measuring the maximum input power of 30dBm(1W), dynamic range :+30dBm to -70dBm.

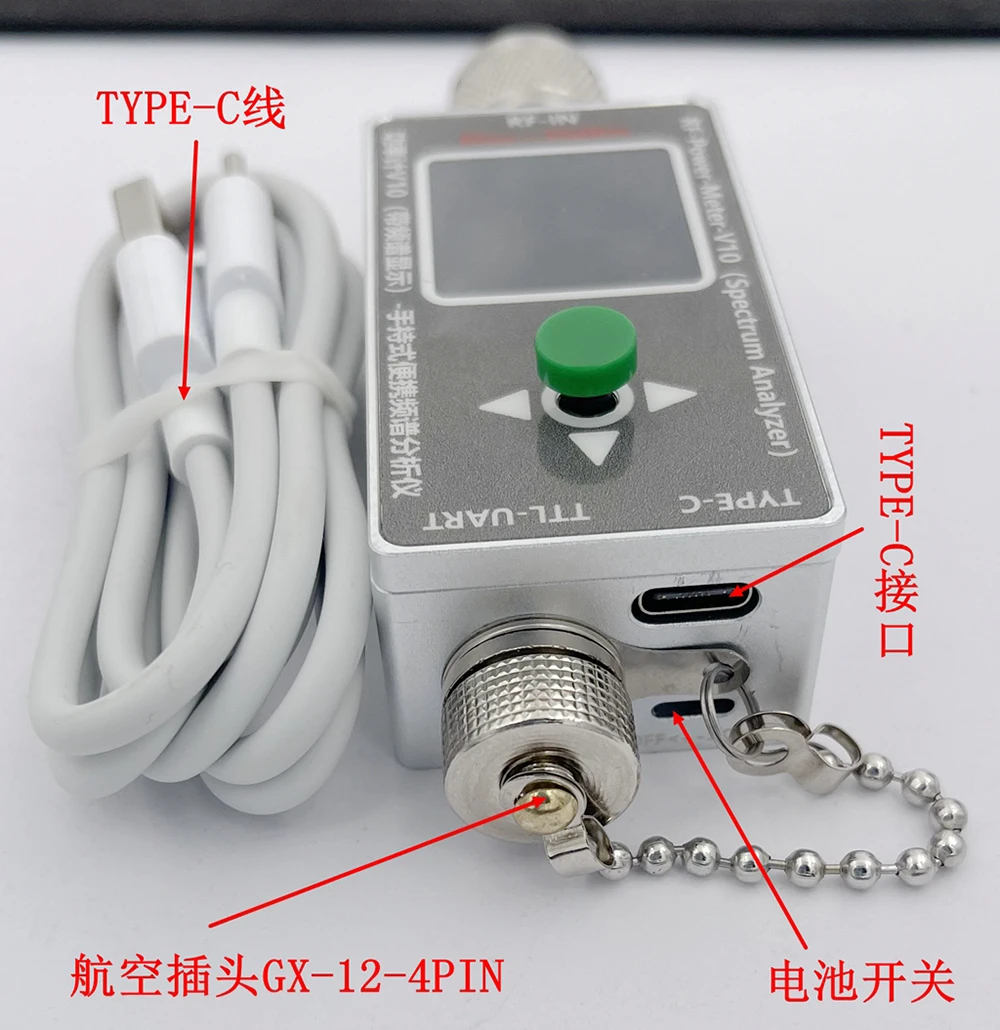

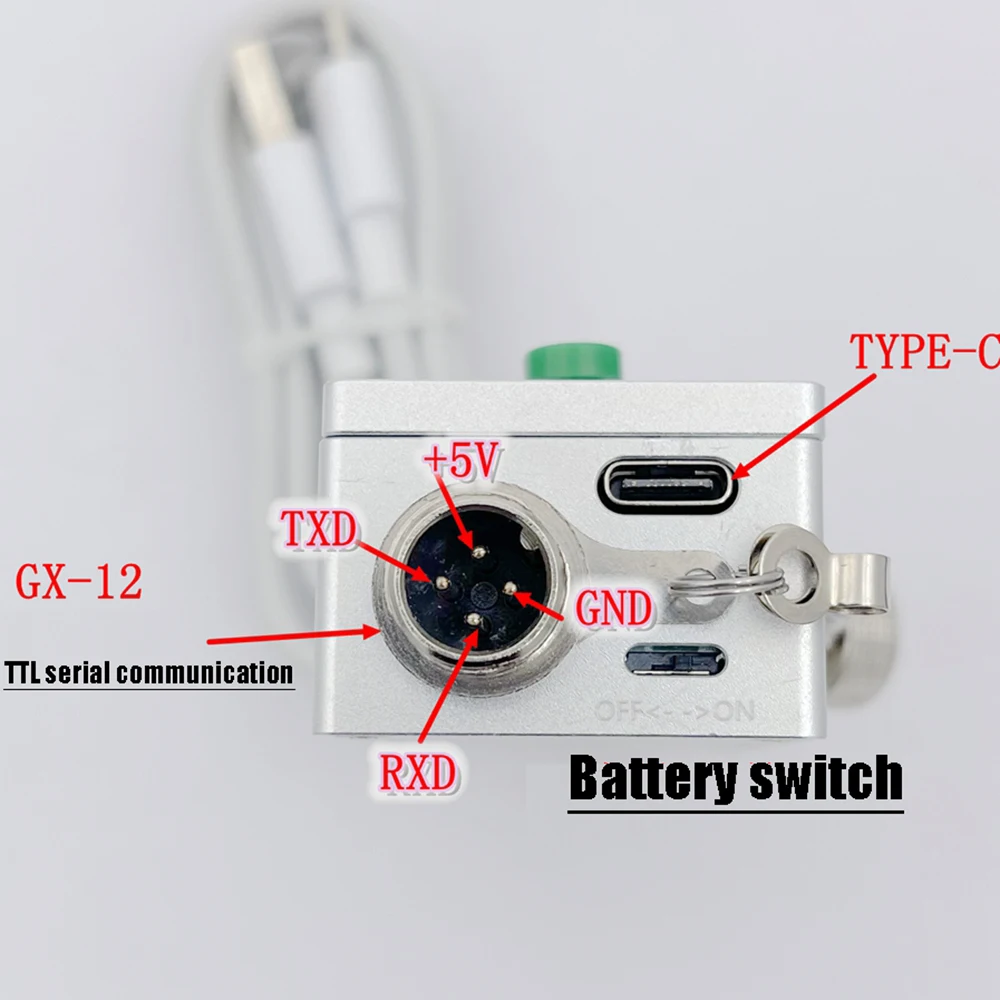

4, RF power meter V10 comes with 1.3 inch TFT LCD and built-in Li battery, can run offline (spectrum); 5, the use of 4 aviation plug to provide TTL serial port read and write function.

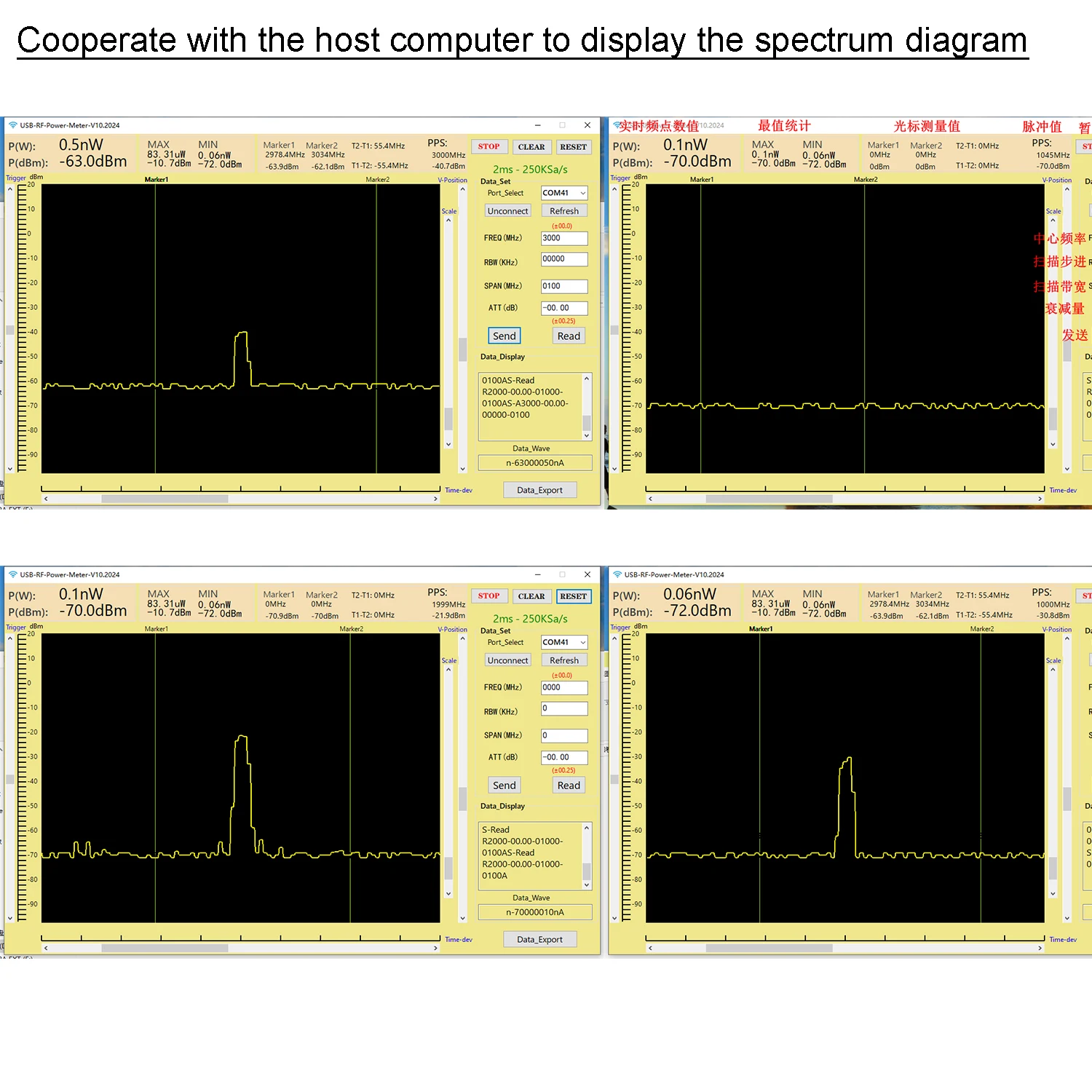

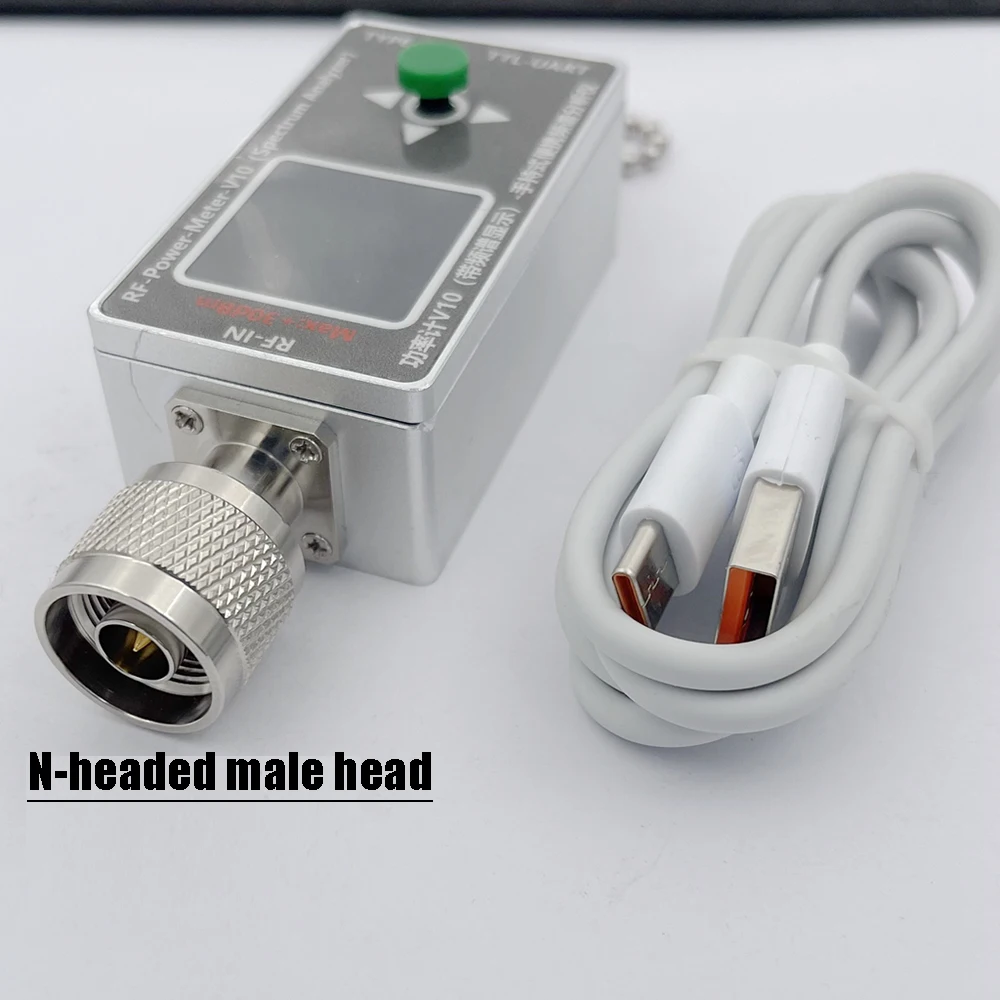

6, the upper computer has two MARK cursor function, easy to measure the modulation pulse width; Automatically find the maximum value, minimum value function. 7, RF input interface :N type male head.

8, boot process: check whether the battery switch needs to be ON position, and then press the middle button of the panel. 9, shutdown process: long press the middle button light machine.

Second, product application:

1. Calibration of RF instruments; 2, RF equipment detection and maintenance;

3, RF circuit standing wave ratio measurement (add feedback bridge); 4, RF circuit return loss measurement;

5, interference detection between wireless communication devices;

6, RSSI (received signal strength indication) and transmit power level detection; 7. Performance evaluation of stepping attenuator;

8, amplifier gain and network attenuation measurement;

9. Measurement of forward power and reflected power in directional coupler; 10. Power measurement of GSM signal modulated by GMSK;

Third, product technical indicators:

1, measuring power range -70 ~ +30dbm (0 to -40dbm has a good linearity, input signal greater than 0 to +30dbm, must set the internal numerical control attenuator ATT=30DB, OFFSET=+30DB measured after the display of the measured power value;

2, measuring power resolution ± 0.1dBm;

3, measurement frequency range 35M ~ 4.4GHz(different models frequency range is different); 4, input impedance :50;

5, dynamic range :100dB;

6, working voltage 5VDC(through the TYPE-C line power supply); 7, charging current :400mA;

8, 66*36*24mm(excluding protruding N head, specific reference to the mechanical drawing given); The body is composed of a fully CNC aluminum alloy shell and weighs less than 100g.

Shipping list:

Host *1

TYPE-C line *1 .
